Premium Levella 24,000 BTU 18.5 SEER2 Ductless Mini Split Inverter+ 230V Air Conditioner Heat Pump
$1,147.70 Original price was: $1,147.70.$997.99Current price is: $997.99.
Description:
Premium Levella® 24,000 BTU 18.5 SEER2 Ductless Mini Split Inverter+ Air Conditioner Heat Pump System Full Set 230V.
SKU: PIAW243800X
Great Unit!!!! Pre-Charged. Installation Kit Included. WIFI Included. AHRI & UL Certifications. Seven Years Warranty in Compressor Five Years in Parts.
Orlando Cooling Depot is an authorized distributor of Premium Levella brand air conditioning products throughout the United States.
- Description
- Technical information
- Warranty
- Additional information
- Brand
- Manuals & Documents
Description
Summary
- High Efficiency 18.5 SEER2 Series Inverter+ ductless mini split heat pump system
- Cooling capacity:24,000 BTU/H with 18.5 SEER2 / 9.5 EER2 efficiency
- Heating capacity:24,000 BTU/H with 8.6 HSPF2 / 3.03 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Length copper line set with flare connections
- Low Ambient Unit (5 F)

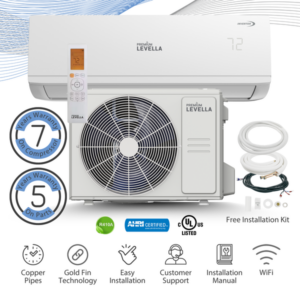

What’s included with the Premium Levella® 24,000 BTU 18.5 SEER2 230V ductless mini-split inverter+ and Air Conditioner & Heat Pump System full set:
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Installation Manual
- User’s Manual
- Manufacturer Warranty
- Free Installation Kit: Line set and wire 10 ft approximately
- Neoprene putty to seal holes
- Plastic pipe wrap
- Wall bracket and drain pipe for Indoor Unit
Technical information
- Brand: Premium Levella
- Model: PIAW243800X ( PIAW243790A/800B )
- Cooling Rated Capacity: 24000 BTU (2 Ton ~1000 sqft )
- Cooling Capacity Range: 6200~24600 Btu/h
- Heating Rated Capacity: 24000 BTU (2 Ton ~1000 sqft )
- Heating Capacity Range: 6800~26800 Btu/h
- Cooling SEER: 18.50
- Cooling SEER2: 18.50
- Cooling EER(A2): 9.50
- Cooling EER2(A Full): 9.50
- Heating HSPF (Region IV): 10.20
- Heating HSPF2 (Region IV): 8.60
- Power Supply: 220-230V~60Hz, 1Ph
- Pipe line: 3/8”-5/8”
- Refrigerant Type: R-410A
- Inverter: Yes
- Wifi: Yes

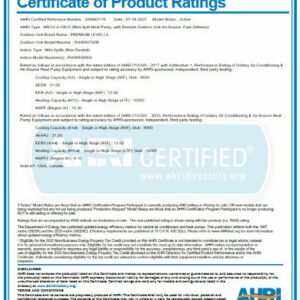

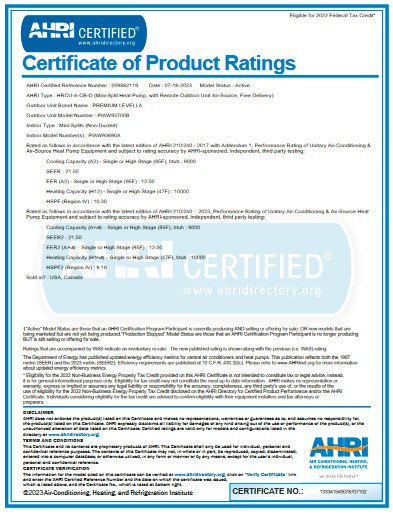

- Certifications: AHRI, UL

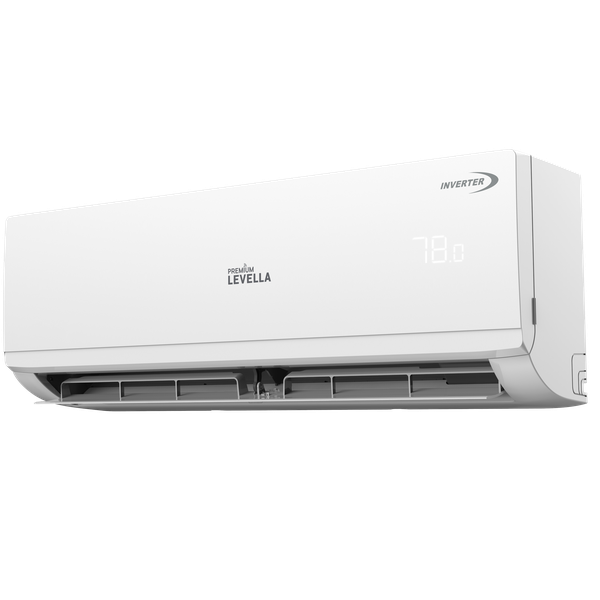

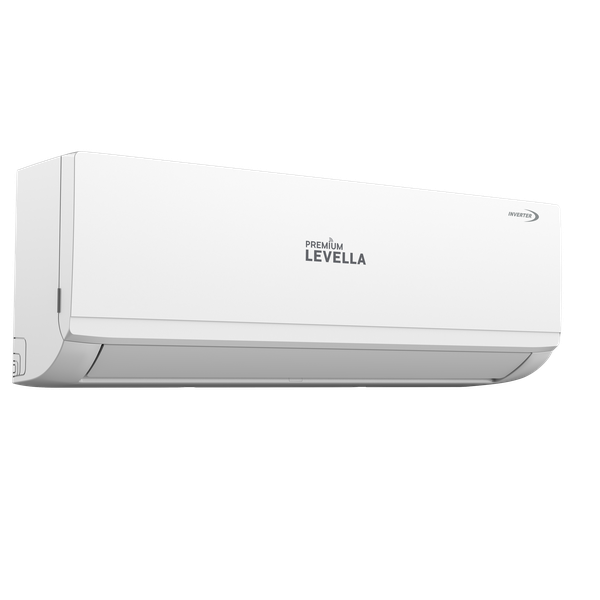

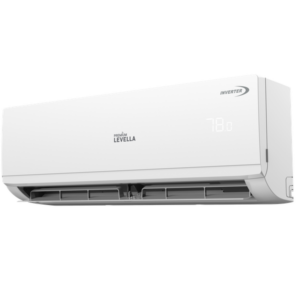

Indoor unit:
- Model: PIAW243790A
- Gross weight: 39.20 LB
- Net weight: 30.00 LB
- Packing dimensions(WxDxH in): 45.50 x 16.30 x 12.40
- Product dimensions(WxDxH in): 42.59 x 9.21 x 9.21
- Pipe line: 3/8”-5/8”
- Anticorrosive: GoldFin
- Temperature display: F° & C°
- Sound Level (Hi/Med/Lo): 45/39/36 dB(A)
- Air Flow (Turbo/Hi/Med/Lo): 601/547/354/321 CFM
- Room Temperature COOL mode: 60°F – 90°F
- Room Temperature HEAT mode: 32°F – 86°F
- Room Temperature DRY mode: 50°F – 90°F
- UPC: 715688088157

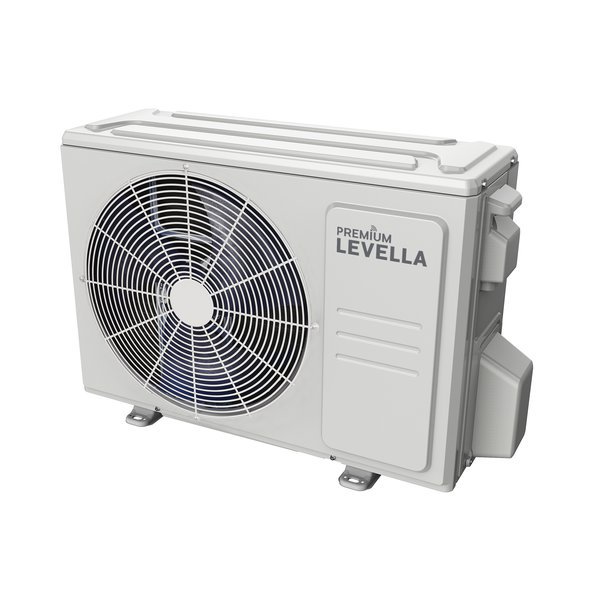

Outdoor unit:
- Model: PIAW243800B-O
- Gross weight: 110.00 LB
- Net weight: 97.90 LB
- Packing dimensions(WxDxH in): 40.60 x 17.20 x 29.50
- Product dimensions(WxDxH in): 35.03 x 13.40 x 26.49
- Pipe line: 3/8”-5/8”

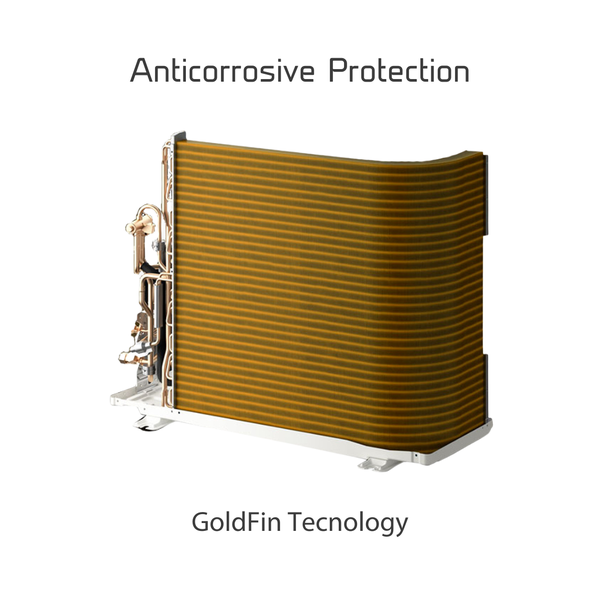

- Anticorrosive: GoldFin
- Sound Level: 60 dB(A)
- Breaker Needed: 20A (double-pole)
- Outdoor Temperature COOL mode: 5°F – 122°F
- Outdoor Temperature HEAT mode: 5°F – 75°F
- Outdoor Temperature DRY mode: 32°F – 122°F
- UPC: 715688088164
Warranty
This comprehensive warranty is extended to you by Gonichea, the exclusive distributor of Premium Levella brand air conditioning products throughout the United States. We are committed to ensuring your satisfaction and providing peace of mind with our high-quality products.
While registration is not mandatory for the Basic Warranty, we strongly encourage you to register your product promptly to unlock the full benefits of our Standard Warranty. You have a generous window of up to 60 days post-purchase to register your equipment. Failure to register within this period will still grant you coverage for 1 to 5 years depending on the purchased product.
Standard Warranty: Premium Levella High Efficiency 18.5 SEER2 Series Inverter+ ductless mini split heat pump system has 7 years warranty in compressor and 5 years warranty in parts.
Basic Warranty: 1 year warranty in compressor and 1 year warranty in parts. Applies when the system is not registered before 60 days post-purchase.
The registration process is straightforward. Click the link and fill out the form at https://www.gonichea.com/warranty/
Additional information
Brand | Premium Levella |
---|
